Twin Hydro - Punching

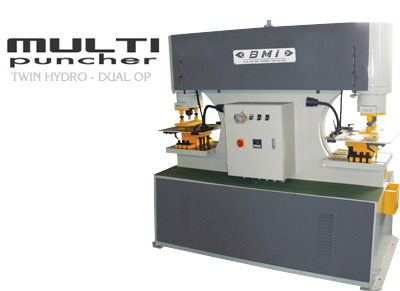

Twin Hydro - Dual Op

  • Standard Tools & Features
  •   Two Working Stations with Different Throats. First Station with Standard Throat and Second Station with Deep Throat, thus making the machine fully compatible with all sorts of Additional Dies and Toolings such as Hole Punching, Crimping, Pipe Notching, Bar Bending, Sheet Bending, Louvre Punching etc..
      Both sides comes with large Machined Gauge Table with Scales and Guides Bars for X & Y position
      T – Slot Bed Plate for Easy Clamping of Dies
      Heavy Duty ‘Swing Away – Clear View’ Stripper at Both Stations
      Quick Change Nut for Punch and Other Dies
      Comes with Extended Table which can be easily removed to Punch in Angles, Channels and Other Profiles.
      An Emergency Stop and Jog Up Button is Fitted at the Punching Station for Operator Safety and Convenience for Die Setting
      Full Stroke Adjustment
      All Standard worldwide available Hydraulic and Electric Components are installed in the machine.

  • Specifications

    Machine Dimensions (L x W x H) mm


    BPM D 65 T

    2 x 65 ton

    1900 x 950 x 1800
    2900 kg
    BPM D 85 T

    2 x 85 ton

    2250 x 950 x 1920
    3700 kg
    BPM D 120 T

    2 x 115 ton

    2350 x 950 x 1970
    4600 kg
    BPM D 175 T

    2 x 175 ton

    2800 x 1100 x 2160
    6750 kg

  • Main Advantage
  •   Dual Working
      Doubling Productivity
      One Machine Multiple usage
      NO Foundation Required
      Compact Design
      Eliminates Requirement for Second Punching Machine
